- MSI
Preț
€230 56 / 450 94 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.msi.com/Motherboard/MPG-B650I-EDGE-WIFI
Graphics
1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD B650
Expansion slots
1x PCI-E x16 slot
-Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
-Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
-Supports x4 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Memory type
2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
Max. overclocking frequency
-1DPC 1R Max speed up to 7200+ MHz
-1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

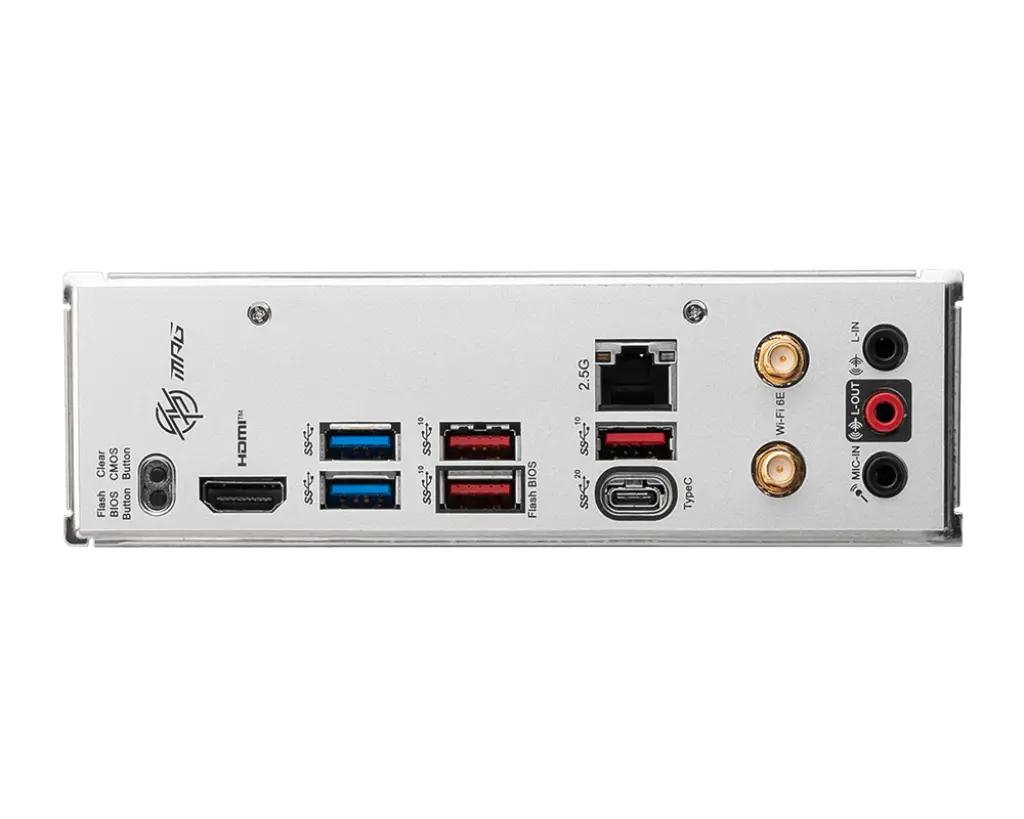

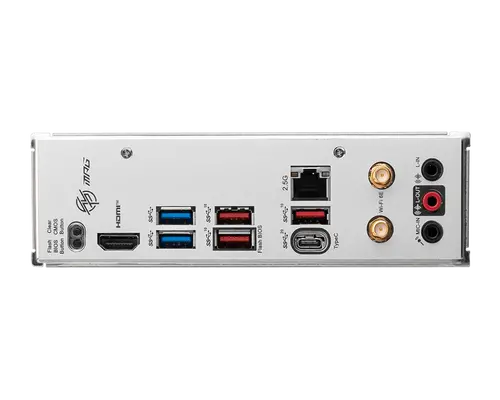

Rear panel I/O
2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
Audio
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Lan
Realtek® RTL8125BG 2.5Gbps LAN
Wireless
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth
5.3
Form factor
Mini-ITX 170mmx170mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.msi.com/Motherboard/MPG-B650I-EDGE-WIFI |
| Chipset | AMD B650 |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Memory type | Supports Dual-Channel mode |
| Memory type | Supports non-ECC, un-buffered memory |
| Memory type | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory type | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memory type | Supports AMD EXPO™ |
| Memory type | Max. overclocking frequency |
| Memory type | -1DPC 1R Max speed up to 7200+ MHz |
| Memory type | -1DPC 2R Max speed up to 6400+ MHz |
| Form Factor | Mini-ITX 170mmx170mm |
| Audio | Realtek® ALC4080 Codec |
| Audio | Supports up to 32-Bit/384 kHz playback on front panel |
| Audio | 7.1-Channel USB High Performance Audio |
| Rear panel I/O | 1x Power Connector(ATX_PWR) |
| Rear panel I/O | 1x Power Connector(CPU_PWR) |
| Rear panel I/O | 1x CPU Fan |
| Rear panel I/O | 2x Front Panel (JFP) |
| Rear panel I/O | 1x Chassis Intrusion (JCI) |
| Rear panel I/O | 1x Front Audio (JAUD) |
| Rear panel I/O | 1x TPM pin header(Support TPM 2.0) |
| Rear panel I/O | 2x USB 2.0 (Front) |
| Rear panel I/O | 2x USB 5Gbps Type A (Rear) |
| Rear panel I/O | 2x USB 5Gbps Type A (Front) |
| Rear panel I/O | 3x USB 10Gbps Type A (Rear) |
| Rear panel I/O | 1x USB 10Gbps Type C (Front) |
| Rear panel I/O | 1x USB 20Gbps Type C (Rear) |
| Rear panel I/O | 1x Pump Fan |
| Rear panel I/O | 1x System Fan |
| Rear panel I/O | 1x Addressable V2 RGB LED connector (JARGB_V2) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Expansion Slots | 1x PCI-E x16 slot |
| Expansion Slots | -Supports x16 (For Ryzen™ 9000/ 7000 Series processors) |
| Expansion Slots | -Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| Expansion Slots | -Supports x4 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Wireless | AMD Wi-Fi 6E |
| Wireless | The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Wireless | Supports MU-MIMO TX/RX |
| Wireless | Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Wireless | Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands |
| Graphics | 1x HDMI™ |
| Graphics | Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz |
| Features | 4x EZ Debug LED |
| I/O | 1x Power Connector(ATX_PWR) |
| I/O | 1x Power Connector(CPU_PWR) |
| I/O | 1x CPU Fan |
| I/O | 2x Front Panel (JFP) |
| I/O | 1x Chassis Intrusion (JCI) |
| I/O | 1x Front Audio (JAUD) |
| I/O | 1x TPM pin header(Support TPM 2.0) |
| I/O | 2x USB 2.0 (Front) |
| I/O | 2x USB 5Gbps Type A (Rear) |
| I/O | 2x USB 5Gbps Type A (Front) |
| I/O | 3x USB 10Gbps Type A (Rear) |
| I/O | 1x USB 10Gbps Type C (Front) |
| I/O | 1x USB 20Gbps Type C (Rear) |
| I/O | 1x Pump Fan |
| I/O | 1x System Fan |
| I/O | 1x Addressable V2 RGB LED connector (JARGB_V2) |
| Storage | 4x SATA 6G |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | 2x M.2 |
| Storage | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Storage | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Storage | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices |
| Bluetooth | 5.3 |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Mini-ITX |
| Chipset | AMD B650 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

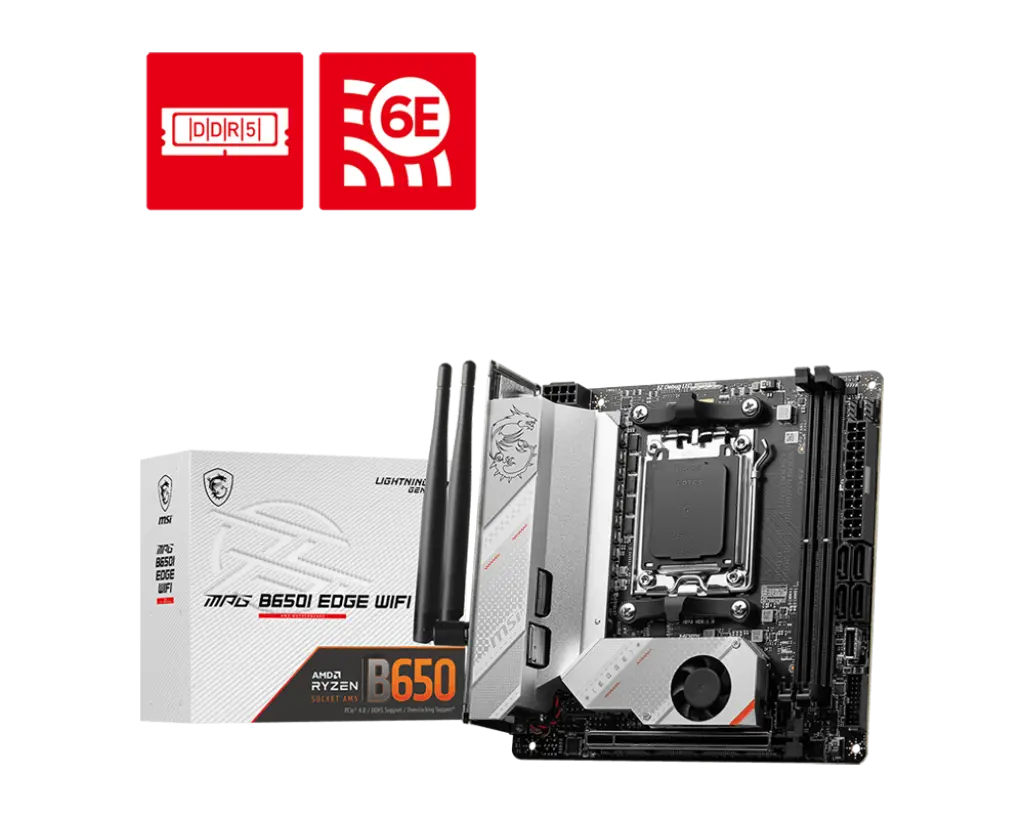

Дънна платка MSI MPG B650I EDGE WIFI Mini-ITX
Изградете компактна, но мощна игрална или работна станция с дънната платка MSI MPG B650I EDGE WIFI. Тя поддържа процесори AMD Ryzen от серии 7000/8000/9000 на сокет AM5, предлагайки изключителна производителност в малък форм фактор. С поддръжка на PCIe 5.0, DDR5 памет и вграден Wi-Fi 6E, това е идеалната основа за висок клас mini-ITX конфигурация.
Ключови Предимства
- Компактен Mini-ITX дизайн — Идеален за малки кутии без компромис с функционалностите.
- AMD AM5 сокет — Поддръжка на най-новите AMD Ryzen процесори за върхова производителност.
- DDR5 памет — Двуканална DDR5 с поддръжка на овърклок за изключителна скорост.
- PCIe 5.0 готовност — Един PCIe 5.0 x16 слот за най-новите видеокарти и един M.2 Gen5 слот за ултрабързо съхранение.
- Вграден Wi-Fi 6E и Bluetooth 5.3 — Високоскоростна безжична връзка с ниско закъснение.
- Премиум охлаждане — Удължен радиатор и M.2 Shield Frozr за оптимално охлаждане.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | Mini-ITX |
| Чипсет | AMD B650 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 96 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка MSI MPG B650I EDGE WIFI
- Ръководство за потребителя
- I/O скоба
- SATA кабели (2)
- Wi-Fi антена
- M.2 винтове
- Стикер за кутия
